Steel Ventilation Duct Inline Fan
video
Steel Ventilation Duct Inline Fan

Steel Ventilation Duct Inline Fan

Steel High Temperature Exhaust Blower 4/6/8 inch Ventilation Inline Duct Steel Fan
MOQ : 100 Sets

Send Inquiry
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction



Products Description
Inline Fan Series

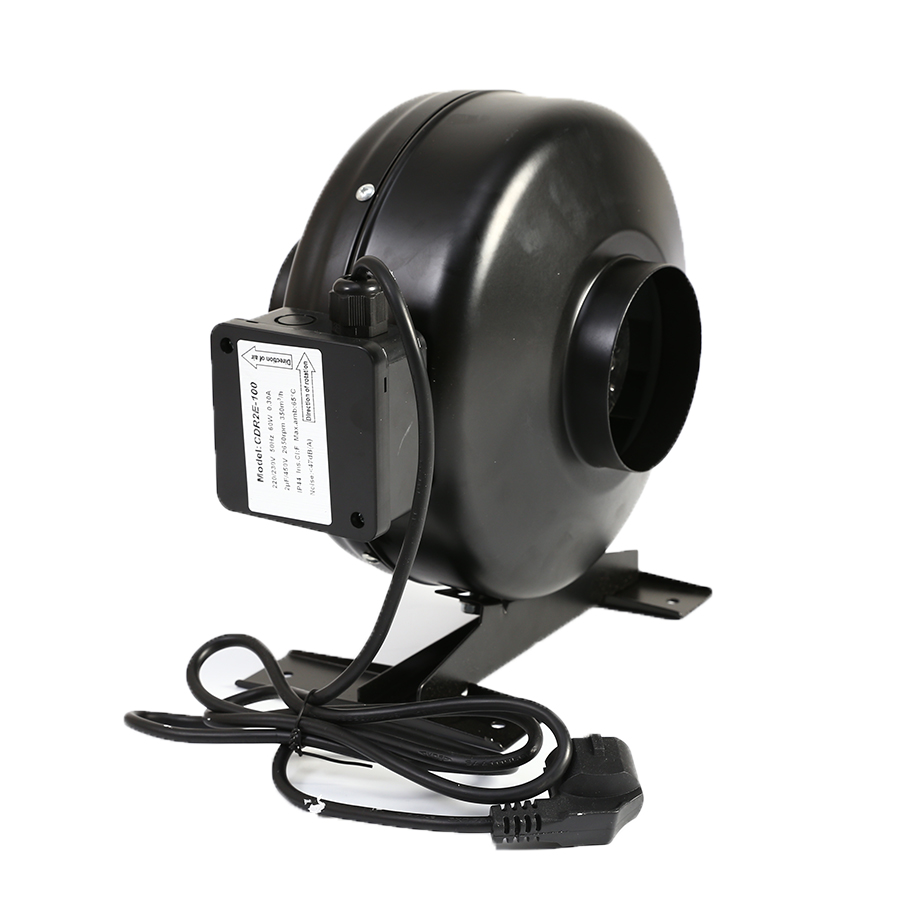

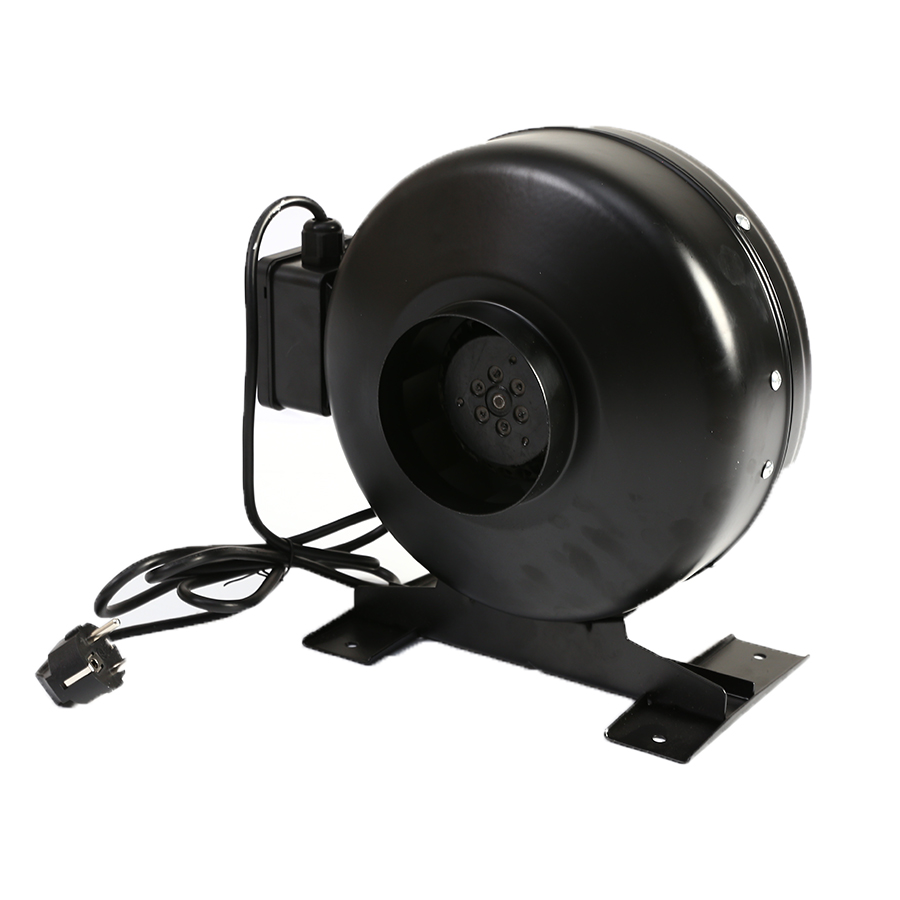

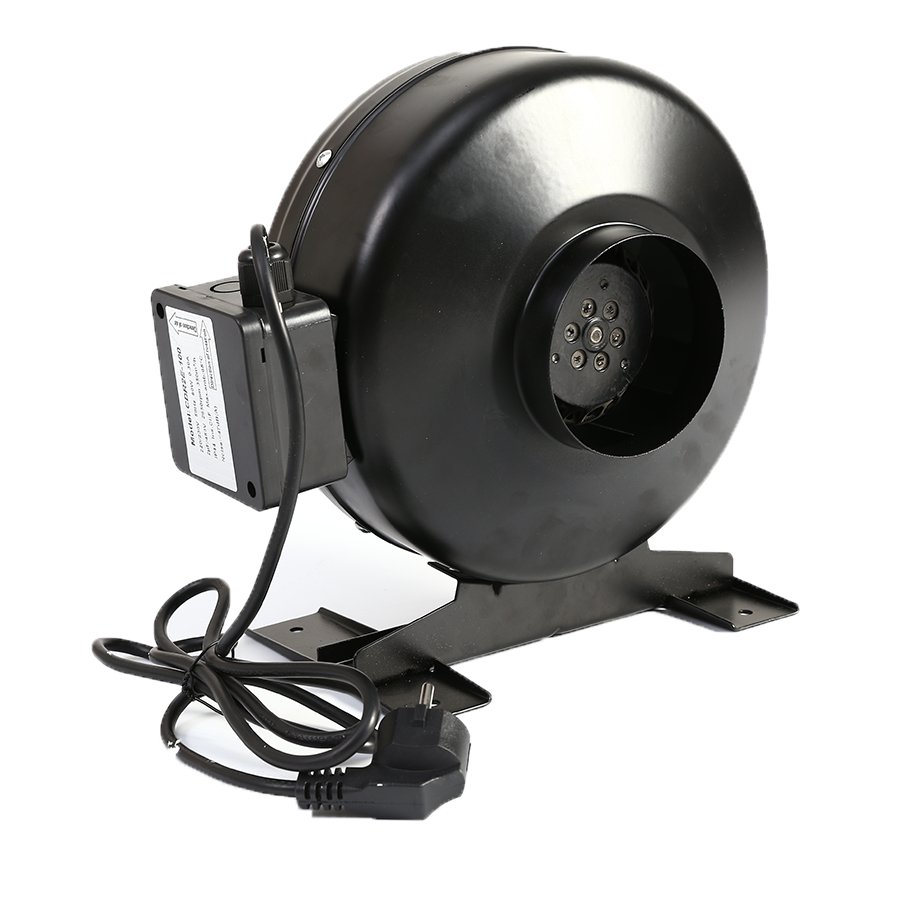

This CDR series external rotor inline duct fan is a radial fan.This fan with compact structure, high capacity and easy installation, can resist high pressure and fit long pipeline operation while operating at low noise. Our fan with moisture resistance, can be installed in moist environment. These fans should fit IP44 grade when being installed in the pipeline system.They cannot be used for conveying abrasive powder,soot and similar materials. The casing of this fan is steel, treatment is power coating.
Model
Rated Voltage
(V)
Frequency
(Hz)
Current
(A)
Input Power
(W)
Highest Speed
(r/min)
Mamum Air Flow
(m³/h)
Pressure
(Pa)
Noise dB
(A)
CDR2E-100
220/230
50
0.30
60
2650
350
320
47
110/230
60
0.65
70
2400
300
280
46
CDR2E-125
220/230
50
0.32
65
2650
490
295
47
110/120
60
0.68
72
2400
450
270
47
CDR2E-150
220/230
50
0.70
150
2600
800
360
52
110/120
60
1.60
170
2400
700
340
50
CDR2E-160
220/230
50
0.72
155
2600
900
340
52
110/120
60
1.65
170
2400
650
320
50
CDR2E-200
220/230
50
0.80
180
2550
1050
570
53
110/120
60
2.00
220
2500
1000
550
52
CDR2E-250
220/230
50
0.83
185
2550
1150
550
53
110/120
60
2.10
230
2500
1100
530
52
CDR2E-315
220/230
50
1.20
270
2600
1800
710
60
110/120
60
3.40
370
2600
1800
700
60
CDR2E315
220/230
50
1.90
400
2700
2300
800
65

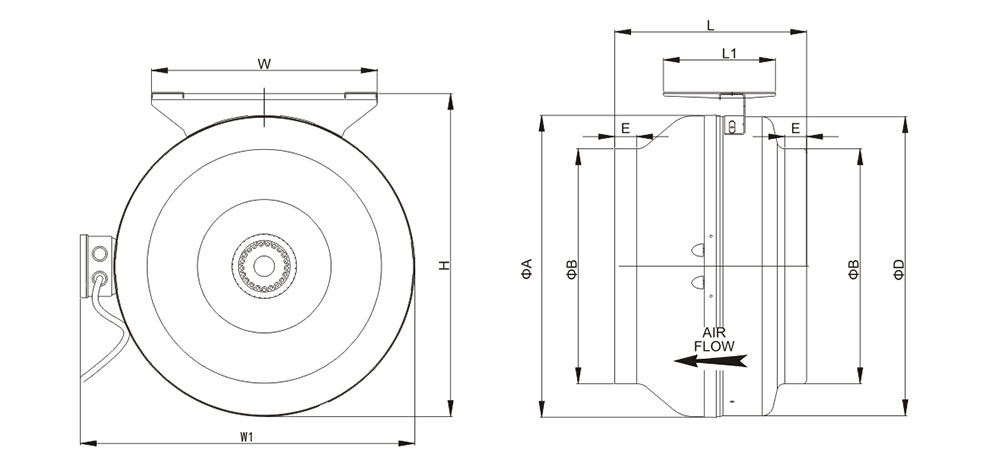

Model
A
B
D
E
L
L1
W
W1
H
CDR2E-100
240
100
238
21
186
155
255
282.5
275
CDR2E-125
240
125
238
24
186
155
225
282.5
275
CDR2E-150
272
150
270
25
199
155
225
316
304
CDR2E-160
272
160
270
26
199
155
225
316
304
CDR2E-200
343
200
340
28
228
155
310
388
378
CDR2E-250
343
250
340
35
228
155
310
388
378
CDR2E-315
402
315
398
29
255
155
340
446
433
Related Products

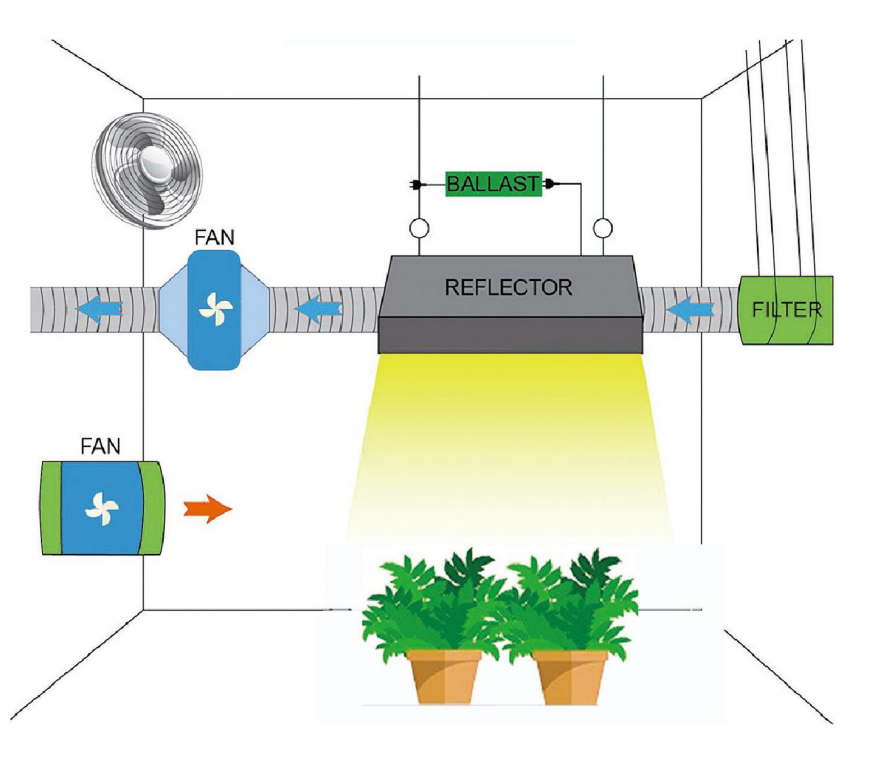

Inline Fan is widely use for grow tent and greenhouse, also available for long-distance transmission of hotels, clubs, supermarkets, storerooms and restrooms and places which need low noise.

Sunshine Garden is a one-stop gardening and hydroponic products supplier, you can choose to meet all your need in our store. Please feel free to consult us freely!

Grow Tent Ventilation Kit Duct Fan Air Circulation Vent Blower


Perfect for grow tents, greenhouses, hydroponics, kitchens, bathrooms, basements, locker rooms, garage to reduce humidity, clear the air and lower temperatures in grow rooms.
Size
4 inch Ventilation Kit Combo
6 inch Ventilation Kit Combo
8 inch Ventilation Kit Combo
Duct Fan
189CFM, 100W, 2850RPM
390CFM, 80W, 2550RPM
720CFM, 190W, 2450 RPM
Air Carbon Filter
38mm Carbon Layer, 10 Inch Height
38mm Carbon Layer, 20 Inch Height
38mm Carbon Layer, 22 Inch Height
Aluminum Ducting Pipe
3m Length (2 Clamps Included)
5m Length (2 Clamps Included)
10m Length (2 Clamps Included)
Package Size
56x25x38 (cm)
55x34x48 (cm)
63x36x58 (cm)
Gross Weight
6kg
9.5kg
14kg
Item
Grow Tent Ventilation Kit, Fan Filter Grow Kit
Kit Combo
Duct Fan, Carbon Filter, Duct Pipe with Clamps
Duct Size
4/6/8 inch



SUNSHINE GARDEN
2X2 Grow Tent Kit
SUNSHINE GARDEN
2.7x2.7 Grow Tent Kit
SUNSHINE GARDEN
4x2 Grow Tent Kit
SUNSHINE GARDEN
4x4 Grow Tent Kit
SUNSHINE GARDEN
5x5 Grow Tent Kit
Scale
Small
Small
Small
Medium
Medium
Size (inch)
24x24x48
32x32x64
48x24x60
48x48x80
60x60x80
Size (cm)
60x60x120
80x80x160
120x60x150
120x120x200
150x150x200
Capacity
1-2 plants
1-2 plants
2-4 plants
4-8 plants
8-10 plants
Loading-bearing
100 lbs.
100 lbs.
100 lbs.
100 lbs.
100 lbs.
Pole Diameter
16mm
16mm
16mm
16mm
16mm
Viewing Windows
YES
YES
YES
YES
YES
Kit Includes
24"x24"x48" Grow Tent; 100W LED Grow Light; 4" Carbon Filter; 4" 189CFM Duct Fan; 4" 10m Air Duct Pipe; Thermometer Humidity Monitor;
Rope Hangers; 60mm Straight Scissor; 3x3ft. Trellis Netting; 7 Days Digital Timer;
Grow Room Glasses; 5pcs 5-gallon Grow Bags
32"x32"x64" Grow Tent; 4" Carbon Filter; 4" 189CFM Duct Fan; 4" 10m Air Duct Pipe; Thermometer Humidity Monitor; Rope Hangers; 60mm Straight Scissor; 3x3ft. Trellis Netting; 7 Days Digital Timer; Grow Room Glasses; 5pcs 5-gallon Grow Bags
48"x24"x60" Grow Tent; 2pcs 150W LED Grow Light; 4" Carbon Filter; 4" 189CFM Duct Fan; 4" 10m Air Duct Pipe; Thermometer Humidity Monitor; Rope Hangers; 60mm Straight Scissor; 3x3ft. Trellis Netting; 7 Days Digital Timer; Grow Room Glasses; 5pcs 5-gallon Grow Bags
48"x48"x80" Grow Tent; 3pcs 150W LED Grow Light; 6" Carbon Filter; 6" 390CFM Duct Fan; 6" 10m Air Duct Pipe; Thermometer Humidity Monitor; Rope Hangers; 60mm Straight Scissor; 3x3ft. Trellis Netting; 7 Days Digital Timer; Grow Room Glasses; 5pcs 5-gallon Grow Bags
60"x60"x80" Grow Tent; 6" Carbon Filter; 6" 390CFM Duct Fan; 6" 10m Air Duct Pipe; Thermometer Humidity Monitor; Rope Hangers; 60mm Straight Scissor; 3x3ft. Trellis Netting; 7 Days Digital Timer; Grow Room Glasses; 8pcs 5-gallon Grow Bags
Application
Use for indoor growing, hydroponics
Use for indoor growing, hydroponics
Use for indoor growing, hydroponics
Use for indoor growing, hydroponics
Use for indoor growing, hydroponics




email contact us now

Hot Tags: steel ventilation duct inline fan, China, suppliers, manufacturers, factory, wholesale, made in China
